Root Cause Analysis: When to use 5-Whys, Fishbone, or Fault Tree

Why method selection matters

Most plants pick an RCA method by habit. The team has a 5-Whys template, so every event gets 5-Whys. Or the safety department mandated TapRoot ten years ago, so every event gets a TapRoot booklet whether it deserves one or not.

The cost of using the wrong method is rarely visible. You still produce a report, the actions still go on the register, the event still closes. What you don't see is the failure mode you missed because the method couldn't see it: 5-Whys won't surface a combination of causes; Fishbone won't help you stop at the right depth; FTA without quantification is theatre.

The good news is that the choice is mostly mechanical once you know the failure type. The next section gives you a decision tree.

The 90-second decision framework

Before opening the Toolbox, answer three questions about the failure event:

1. How serious was it (or could it have been)? Safety-critical or loss of containment → the analysis will end up in front of regulators or insurers. Operational only → the audience is the maintenance team.
2. How well do you understand the failure mechanism? If you can already write a chain of "because A, then B" sentences confidently, the cause structure is linear. If you find yourself listing candidates ("could be the sensor, could be the actuator, could be the procedure...") the structure is parallel.
3. Has this happened before? First occurrence → you're investigating one event. Third occurrence → you're investigating a systemic problem, and the cause categories matter more than any single chain.

The three methods, side by side

What each method is good at

5-Whys: what it actually is

5-Whys started at Toyota in the 1930s. It survived because it's hard to do badly — or rather, the way you do it badly is obvious to anyone reading it. The point is not to ask exactly five questions; it's to drive the analysis past symptoms down to causes you can act on.

The discipline is in two places. First, stop when stopping makes sense, not when you hit five. If the second "why" already lands on a management-system root cause (no procedure existed for this scenario), don't pad to five. If the seventh "why" still hasn't reached anything controllable (the chemistry of metal fatigue), stop and accept the immediate cause as the actionable root.

Second, each "why" should follow from the previous answer factually, not by interpretation. "Why did the pump trip?" "Because the bearing temperature alarm activated." That's a factual chain. "Why did the pump trip?" "Because maintenance has been weak this year." That's a jump, not a chain — and it short-circuits the analysis.

When 5-Whys is the right call

• You have one event, not a recurring pattern
• The symptoms point clearly at one mechanism
• The audience is the maintenance team, not regulators
• You can defend the analysis in 1–2 pages
• Time to closure matters — production wants the asset back

When 5-Whys is the wrong call

• You're listing candidates rather than tracking a chain (use Fishbone)
• Loss of containment, fatality potential, or regulatory exposure (use FTA)
• Recurring failure — the chain is different each time (Fishbone first, then 5-Whys per branch)
• The team strongly disagrees on the immediate cause — 5-Whys can't arbitrate, it can only follow consensus

Fishbone: the 6-M categories

Kaoru Ishikawa designed the fishbone diagram for Kawasaki Steel in the 1960s. The original was for quality engineering in manufacturing; the 6-M categories are the version that travelled into reliability and now sits in IEC 62740 Annex C as one of the recommended structured methods.

The six categories are deliberately broad. They're meant to force the team to consider cause types they wouldn't have thought of. When the team is wired to blame the equipment, "Method" makes them look at the procedure. When the team is wired to blame the operator, "Measurement" makes them look at the instrument that misled the operator.

When Fishbone is the right call

• Recurring failure — the chain is different each time, but the categories repeat
• Multiple plausible causes, none obviously dominant
• Workshop format with a mixed audience (engineering, operations, maintenance)
• You need to make sure the team didn't overlook a whole category (the most common mode of failure in 5-Whys)

When Fishbone is the wrong call

• The cause is genuinely linear and you'd be padding categories to look thorough
• Safety-critical event where you need quantified combinations (use FTA)
• Time pressure — a proper fishbone needs at least an hour of structured discussion
• Single-analyst investigation — the whole value is in cross-functional brainstorm

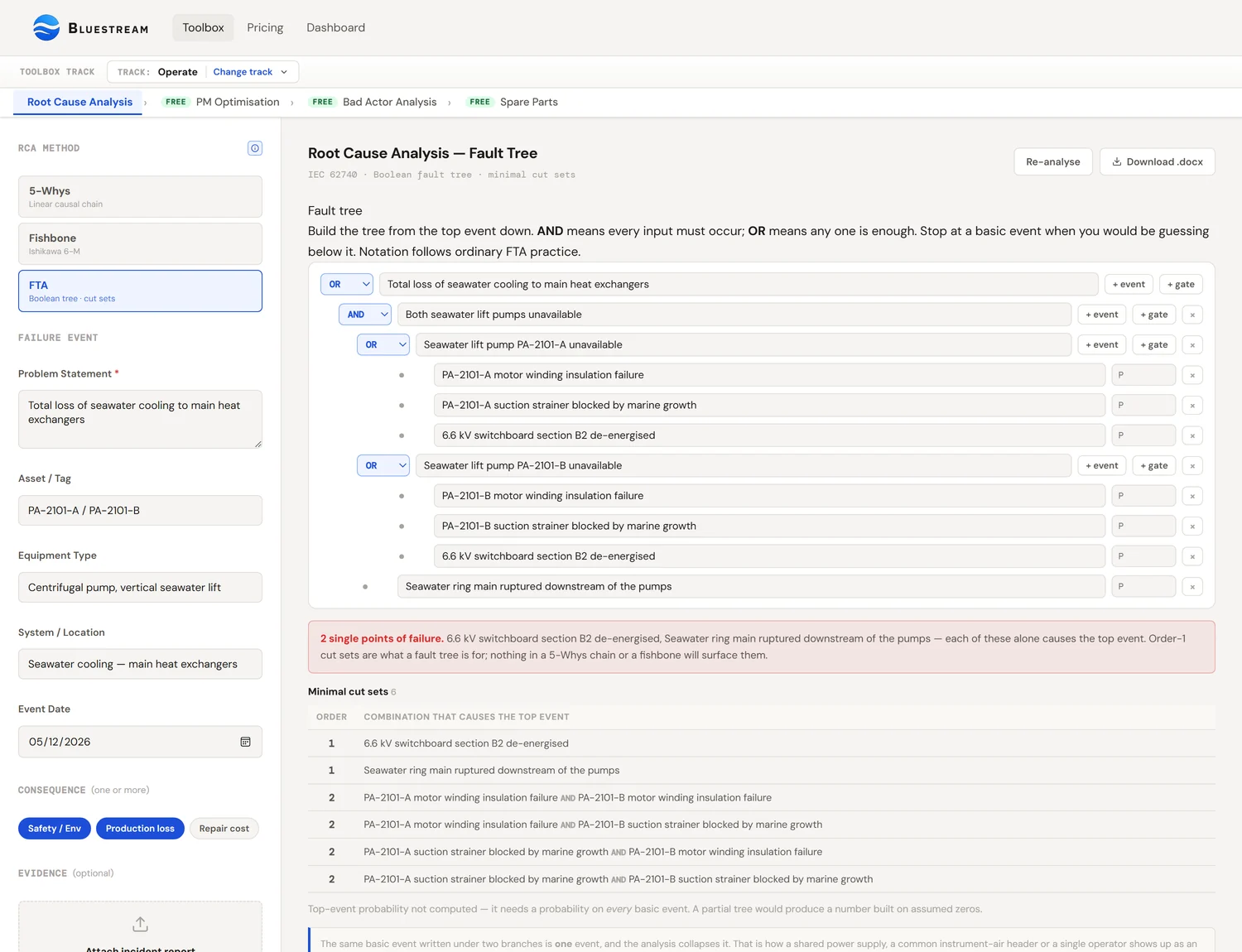

Fault Tree Analysis: when only logic gates will do

FTA is the heaviest of the three. It's also the only one that can tell you which combinations of basic events produce the top event — and, with failure-rate data, how likely each combination is.

A fault tree starts with the top event (the failure you're investigating, or a hypothetical accident scenario). It's broken into intermediate events connected by AND/OR logic gates. An OR gate means any of the children can cause the parent; an AND gate means all children must occur together. Decomposition continues until you reach basic events — failures whose probability you can either measure (from OREDA, vendor MTBF, plant history) or assert from first principles.

The output is a list of minimal cut sets: the smallest combinations of basic events that produce the top event. A single basic event under an OR gate is a one-element cut set, which means it's a single point of failure. Cut sets with multiple basic events indicate that several things must go wrong simultaneously — usually less likely, but not always (common-cause failures defeat that assumption).

When FTA is the right call

• Loss of containment, fatality potential, or major environmental release
• Demand-mode safety system — ESD, F&G, blowdown — failed or partially failed on demand
• You need to demonstrate to a regulator that the system is acceptably safe (a one-page 5-Whys won't do)
• You need quantified probability of the top event (with caveats — see below)
• You suspect common-cause or common-mode failure across redundant trains

When FTA is the wrong call

• You don't have failure-rate data for the basic events — an unquantified tree is documentation, not analysis
• The failure mechanism is non-technical — human factors, procedural drift, and management-system causes resist boolean modelling
• Time pressure — even a small fault tree is a one-day exercise minimum
• The audience is operational, not regulatory — you'll spend more time explaining the tree than they'll spend reading the actions

Combining methods in one investigation

A common pattern for non-trivial events is to chain methods rather than pick one. The hierarchy that works in practice:

1. Fishbone first to map the candidate cause space without committing. Cheap insurance against missing a whole category.
2. 5-Whys per promising branch to drive the strongest candidates to actionable depth.
3. FTA on the critical sub-path if any branch involves a safety system, redundancy, or a combination that warrants quantification.

The Bluestream Toolbox supports this workflow directly. Run a Fishbone, identify the strong category, switch to 5-Whys for that branch, and both outputs land in the same RCA report. Push the immediate cause into FMECA from either method — the Develop/Operate loop closes the same way regardless of which method produced the finding.

Common mistakes (in all three methods)

1. Stopping at "operator error". The most common 5-Whys failure mode. "Operator error" is not a root cause; it's the place where the investigation should start. Why did the operator do that? What did the procedure say? What did the HMI show? Push past human action to the system that produced the action.
2. Padding to look thorough. Six bullets per Fishbone category when only two are real. Five whys when three would have ended at a system cause. Length is not depth.
3. Confusing chronology with causation. "The alarm sounded, then the pump tripped, therefore the alarm caused the trip" — classic post hoc. Both could have a common upstream cause.
4. Calling the immediate cause the root cause. A bearing failed. Why was that bearing in service longer than its rated life? Why was no condition monitoring detecting the wear? The bearing is the immediate cause. The system gap is the root cause.
5. Quantifying a fault tree without data. Made-up failure rates produce decision-grade numbers from non-decision-grade inputs. If you don't have OREDA, vendor data, or plant history, document the qualitative cut sets and stop there.
6. Letting the loudest voice drive the analysis. The whole point of a structured method is to slow down the team's first hypothesis. If the room has settled on the cause before the analysis starts, the method is decoration.
7. Findings without actions or owners. An RCA without specific, owned, dated corrective and preventive actions is documentation. It does not change anything in the maintenance program.

Closing the loop: from RCA back to the program

The point of every RCA is to change something in the program so the same failure doesn't reach the same conclusion next time. The Bluestream Operate track makes this explicit. Every RCA result has two write-back buttons:

• Add as failure mode to FMECA. The immediate cause becomes a new row in the FMECA for that equipment class. Future analyses inherit it. See the FMECA guide's RCA loopback section for the full mechanism.
• Revise RCM strategy. If the systemic cause says "the PM was wrong" or "the strategy should have been on-condition, not calendar", you go straight to the RCM decision tree for that failure mode and re-derive the task. See the RCM guide's RCA loopback section.

An RCA that doesn't close the loop is half done. Pick the method that fits the failure, run it properly, then push the finding back into the FMECA and RCM that produced the original program. That is what makes the next instance of the failure rare instead of inevitable.

References

• IEC 62740:2015, Root cause analysis (RCA). The methodology and reporting standard. Annex B covers chain-style methods (5-Whys family); Annex C covers categorical methods (Fishbone family).
• IEC 61025:2006, Fault tree analysis (FTA). The international standard for tree construction, gate symbology, cut-set analysis, and quantification.
• ISO 14224:2016, particularly Annex C.3 (failure mechanism and cause taxonomy). The Toolbox uses this taxonomy as a vocabulary prior in every RCA prompt so candidate causes use industry language.
• SAE JA1011 / JA1012, the RCM standards. Define what makes a failure mode worth controlling and how to choose a maintenance task — the destination for RCA findings via the write-back loop.
• CCPS Guidelines for Investigating Process Safety Incidents (2003, 2nd ed.). The chemical-process industry's deep reference on incident investigation, complementing IEC 62740 for major-accident events.
• Andersen, B. & Fagerhaug, T. (2006), Root Cause Analysis: Simplified Tools and Techniques, ASQ Quality Press. The classic working-engineer reference on method selection and facilitation.
